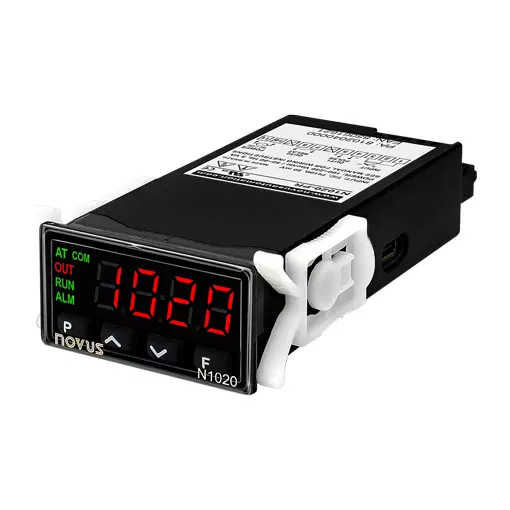

Temperature Controller – NOVUS N1020
Price on request
The NOVUS N1020 is a compact, high-performance PID temperature controller with self-adaptive precision, flexible connectivity, and robust protection, designed for accurate industrial process control in space-constrained applications.
Description
Overview
A compact and high-performance PID temperature controller designed for precise industrial process control. The NOVUS N1020 combines advanced functionality with a space-saving design, making it ideal for demanding applications in limited panel space.
Key Features:
- Compact DIN 1/32 size (48 × 24 mm)
- Self-adaptive PID control for high precision
- USB Type-C configuration (QuickTune software)
- Optional RS485 with Modbus RTU
- IP65 front panel protection
- Push-In connectors for easy installation
- Supports multiple sensor types
- Advanced alarms and Soft-Start function
Specifications:
- Display: Alphanumeric LCD
- Control: Self-adaptive PID (DeepCTRL technology)
- Inputs: Thermocouples (J, K, T, E, S, N, R, B), Pt100, 0–50 mV
- Outputs: Pulse output + 1 relay
- Sampling Rate: 18 ms
- Power Supply: 100–240 Vac/dc or 12–24 Vdc
- Operating Temp: -20 °C to 60 °C
- Protection: IP65 front panel
- Housing: ABS + PC (UL94 V-0)
Applications:
Industrial Automation, Food Processing, Laboratories, Healthcare, Refrigeration Systems
Additional Information:
Optional communication and configurations available depending on application requirements.
