Specialised Rubber Pipes and Large-Diameter Hose Solutions
Price on request
These food-grade flexible rubber pipes are designed for bakery flour handling systems, providing effective isolation for accurate weighing while ensuring durable, hygienic, and efficient material transfer in batching and conveying applications.
Description
Overview

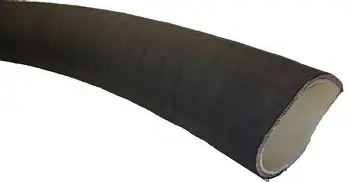

These high-quality, food-grade flexible rubber pipes are specifically designed for use in bakery flour handling systems. Installed between rigid pipelines and weighing hoppers, they provide essential isolation to ensure accurate weighing and prevent interference with load cell measurements in batching systems.
Key Features
• Food-grade construction suitable for hygienic environments
• Ensures accurate weighing by isolating hopper from pipeline
• Flexible design for easy installation and system integration
• Available in standard and large diameters for high-capacity systems
Applications
Flour silos, storage bins, weighing hoppers, batching systems, bakery mixers, pneumatic conveying systems, and ingredient transfer points in production lines

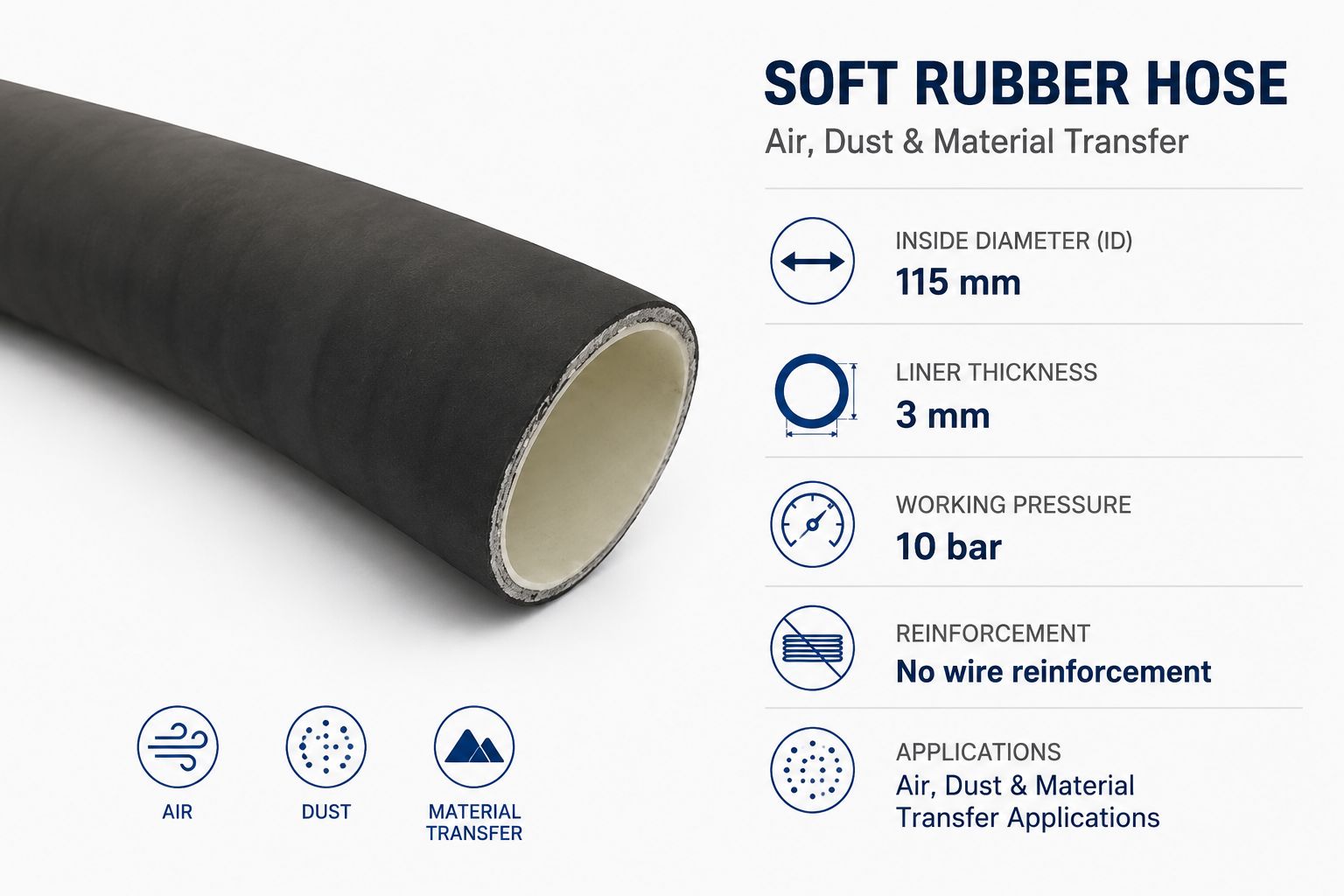

Specifications
- Inner Diameter: Example 115 mm (custom sizes available)
- Material: Soft rubber with abrasion-resistant liner
- Reinforcement: No wire reinforcement
- Liner Thickness: 3 mm abrasion-resistant
- Working Pressure: Up to 10 bar
- Environment: Food-grade, dry ingredient and dust handling applications
Options & Configurations
• Standard and large-diameter pipe options
• Custom lengths and sizes available
• Tailored solutions for high-volume conveying systems
Additional Features
• Minimises dust emissions and product loss
• Improves weighing accuracy and batching efficiency
• Durable construction for long service life
• Hygienic and suitable for food-processing environments
• Ideal for both standard and high-capacity bakery installations
