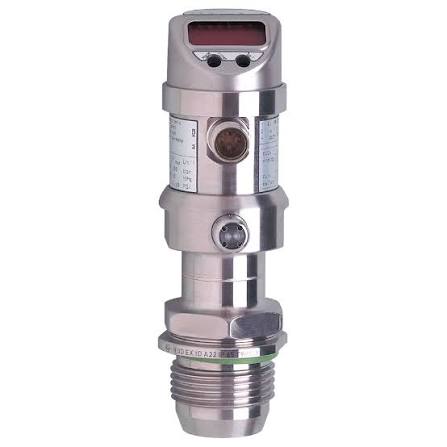

Electronic Pressure Sensor – PI-1-1BREA01-MFRKG/US/3D/3G/P
Price on request
Description
Overview
The PI-1-1BREA01-MFRKG/US/3D/3G/P Electronic Pressure Sensor is a high-precision process instrument designed for accurate measurement of relative pressure and vacuum in demanding industrial applications. Featuring configurable digital switching and analogue outputs, a 350° freely rotatable housing, and suitability for hazardous areas, it delivers reliable pressure monitoring for liquids, gases, and viscous media in process automation systems.
Key Features
- High-accuracy measurement of relative pressure and vacuum
- Configurable digital switching and analogue outputs
- Selectable PNP/NPN output with configurable NO/NC switching
- Configurable 4–20 mA or 0–10 V analogue output
- 350° freely rotatable housing for flexible installation
- Suitable for hazardous area applications
- Gold-plated contacts for enhanced reliability
Applications
Industrial automation, hydraulic systems, pneumatic systems, water and wastewater treatment, chemical processing, food and beverage production, oil and gas, process control, and hazardous area installations.
Specifications
- Product Type: Electronic Pressure Sensor
- Model: PI-1-1BREA01-MFRKG/US/3D/3G/P
- Pressure Range: -1 to +1 bar (-1000 to +1000 mbar / -100 to +100 kPa / -14.5 to +14.5 psi)
- Pressure Type: Relative Pressure / Vacuum
- Process Connection: G1 External Thread with 27 mm Sealing Cone
- Operating Voltage: 18–32 VDC
- Outputs: 1 Digital Output + 1 Analogue Output
- Digital Output: Configurable PNP/NPN, Normally Open or Normally Closed
- Analogue Output: Configurable 4–20 mA or 0–10 V (Invertible)
- Maximum Switching Current: 250 mA
- Response Time: <100 ms
- Media: Liquids, Gases, Viscous Media, and Liquids with Suspended Particles
- Medium Temperature: -20°C to +60°C (up to +125°C, +145°C for short periods outside hazardous areas)
- Housing: 350° Freely Rotatable
- Protection Features: Reverse Polarity, Short-Circuit, Overload Protection, Integrated Watchdog
Options & Configurations
- Selectable PNP or NPN switching output
- Configurable Normally Open (NO) or Normally Closed (NC) switching function
- Selectable 4–20 mA or 0–10 V analogue output
- Adjustable switching points, reset points, and analogue scaling
- Adjustable process value and analogue output damping
Additional Features
- Measurement accuracy of ±0.2% of span
- Long-term stability of ±0.1% per year
- Gold-plated contacts provide dependable long-term performance
- Suitable for hazardous area installations
- Freely rotatable housing simplifies installation and commissioning
- Ideal for demanding industrial process control and automation applications
