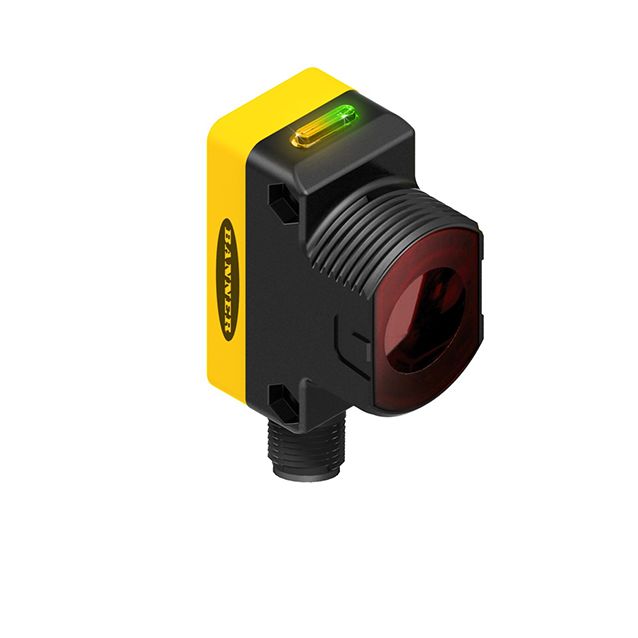

Diffuse Photoelectric Sensor – QS30 Background Suppression
Price on request
Description
Overview
The QS30 Diffuse Photoelectric Sensor is a compact, high-performance proximity sensor designed for reliable object detection using background suppression technology. Its fixed sensing range eliminates false detection of background objects, making it ideal for industrial automation, packaging, and material handling applications.
Key Features
• Background suppression for accurate object detection
• Fixed sensing range up to 200 mm
• Red light source for reliable sensing
• Selectable PNP/NPN normally open output
• Compact QS30 housing for easy installation
• IP67 protection for demanding industrial environments
Applications
Industrial automation, conveyor systems, packaging machinery, material handling, assembly lines, object detection, machine building, and process control.
Specifications
- Sensor Type: Diffuse Photoelectric Sensor
- Operating Mode: Background Suppression (Non-Adjustable)
- Housing Size: QS30 Rectangular (35 × 22 × 57 mm)
- Sensing Range: 0–200 mm
- Light Source: Red LED
- Operating Voltage: 10–30 VDC
- Output: PNP/NPN, Normally Open (NO)
- Connection: M12 × 1 Connector
- Housing Material: Thermoplastic, Yellow
- Operating Temperature: -20 °C to +70 °C
- Protection Class: IP67
Options & Configurations
• PNP or NPN output compatibility
• M12 connector for quick installation
• Suitable for integration with PLCs and industrial control systems
Additional Features
• Background suppression reduces false triggering from surrounding objects
• Compact and rugged design for reliable long-term operation
• Resistant to dust, moisture, and industrial contaminants
• Ideal for high-speed detection in automated production environments
Order number: 3073086
Alternative order number : 73086
