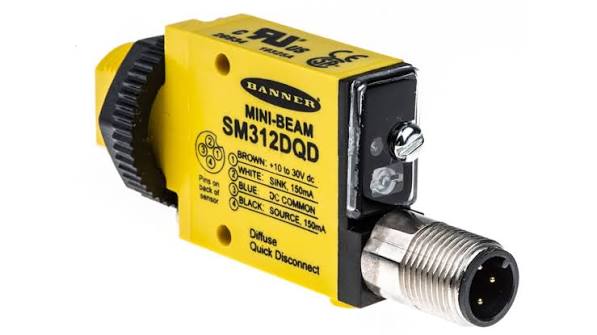

Diffuse Photoelectric Sensor – Mini Beam IR
Price on request
Description
Overview
The Mini Beam Diffuse Photoelectric Sensor is a compact and energy-efficient proximity sensor designed for reliable object detection in industrial automation applications. Featuring infrared sensing technology and a rugged encapsulated housing, it provides dependable performance in demanding environments while remaining easy to install in confined spaces.
Key Features
• Compact Mini Beam design for space-saving installation
• Diffuse sensing technology for reliable object detection
• Infrared (IR) light source
• Selectable PNP/NPN normally open output
• Encapsulated housing for increased durability
• IP67 protection for harsh industrial environments
Applications
Industrial automation, conveyor systems, packaging machinery, material handling, assembly lines, object detection, machine building, and process control.
Specifications
- Sensor Type: Diffuse Photoelectric Sensor
- Operating Mode: Diffuse
- Housing Size: Mini Beam (53.3 × 12.3 × 30.7 mm)
- Sensing Range: 0–380 mm
- Light Source: Infrared (IR)
- Operating Voltage: 10–30 VDC
- Output: PNP/NPN, Normally Open (NO)
- Connection: 2 m Cable
- Housing Material: Thermoplastic, Yellow
- Operating Temperature: -20 °C to +70 °C
- Protection Class: IP67
Options & Configurations
• PNP or NPN output compatibility
• 2 m cable connection for easy installation
• Suitable for integration with PLCs and industrial control systems
Additional Features
• Encapsulated construction for enhanced durability
• Compact design for installation where space is limited
• Resistant to dust, moisture, and harsh industrial conditions
• Ideal for continuous operation in automated production environments
Order number: 3025619
Alternative order number : 25619
